Deco Pro SW/MW Bluetooth professional graphic art tablet

Deco Pro Series
Wireless Limitless

Our Deco Pro series of pen tablets has newly launched two wireless Bluetooth models: Deco Pro SW and MW, to expand your creativity. Use its innovative dual wheels and eight shortcut keys to greatly improve your workflow. The ultra-thin and streamlined design has won two international awards. Everything has been meticulously crafted for bringing you the ultimate drawing experience.

Wireless Connectivity
Limitless Creativity

Deco Pro SW and MW are delicately integrated with advanced Bluetooth v5.0 chips for reliable wireless connections. With 3–5 meters of indoor wireless working area, there is more space for your creation. Feel free to capture your inspiration without limitation.

*The data comes from a laboratory simulation test and may differ depending on the environment that it is used in.

7mm Slim
Superior Endurance
Continuous Inspiration

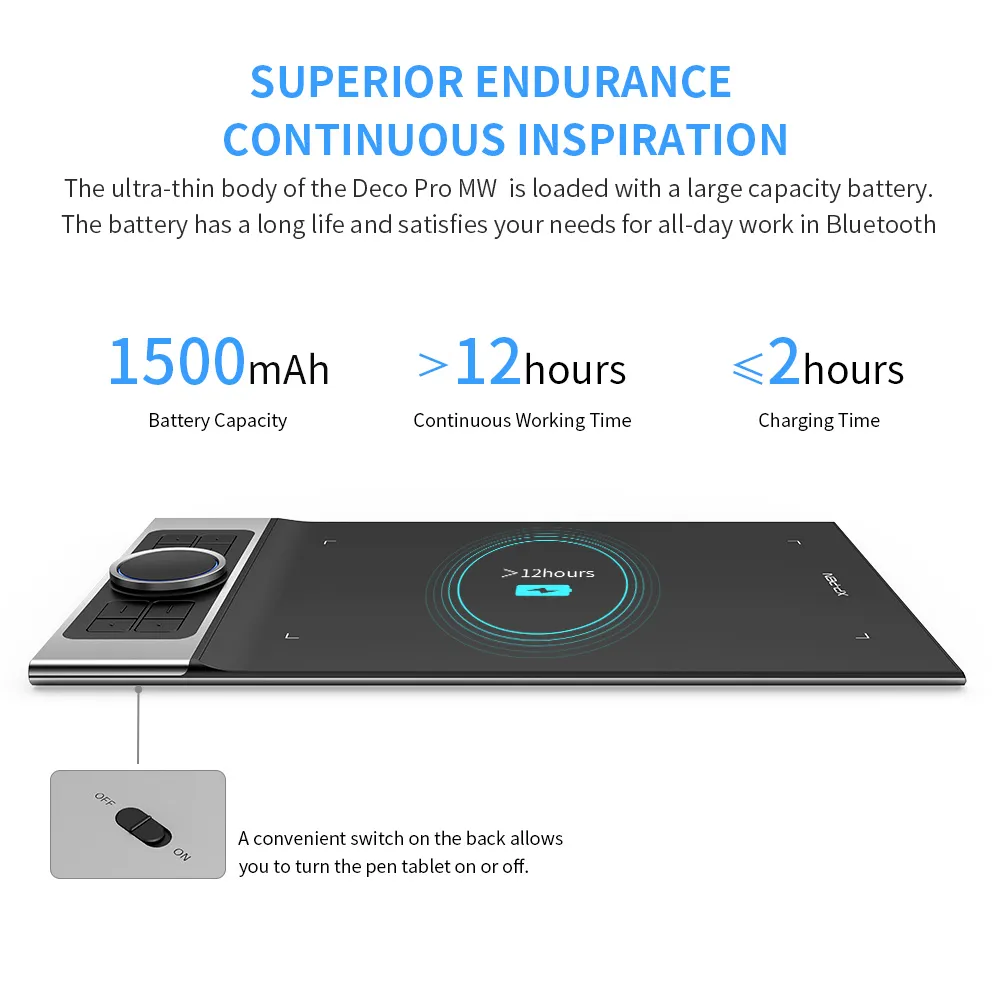

The ultra-thin 7mm body of the Deco Pro SW and MW is loaded with a large capacity battery. The battery has a long life and satisfies your needs for all-day work in Bluetooth mode. A convenient switch on the back allows you to turn the pen tablet on or off. Slim size, mighty endurance.

*The data comes from a laboratory simulation test and may differ depending on the environment that it is used in.

Hours

Efficient Dual Dials

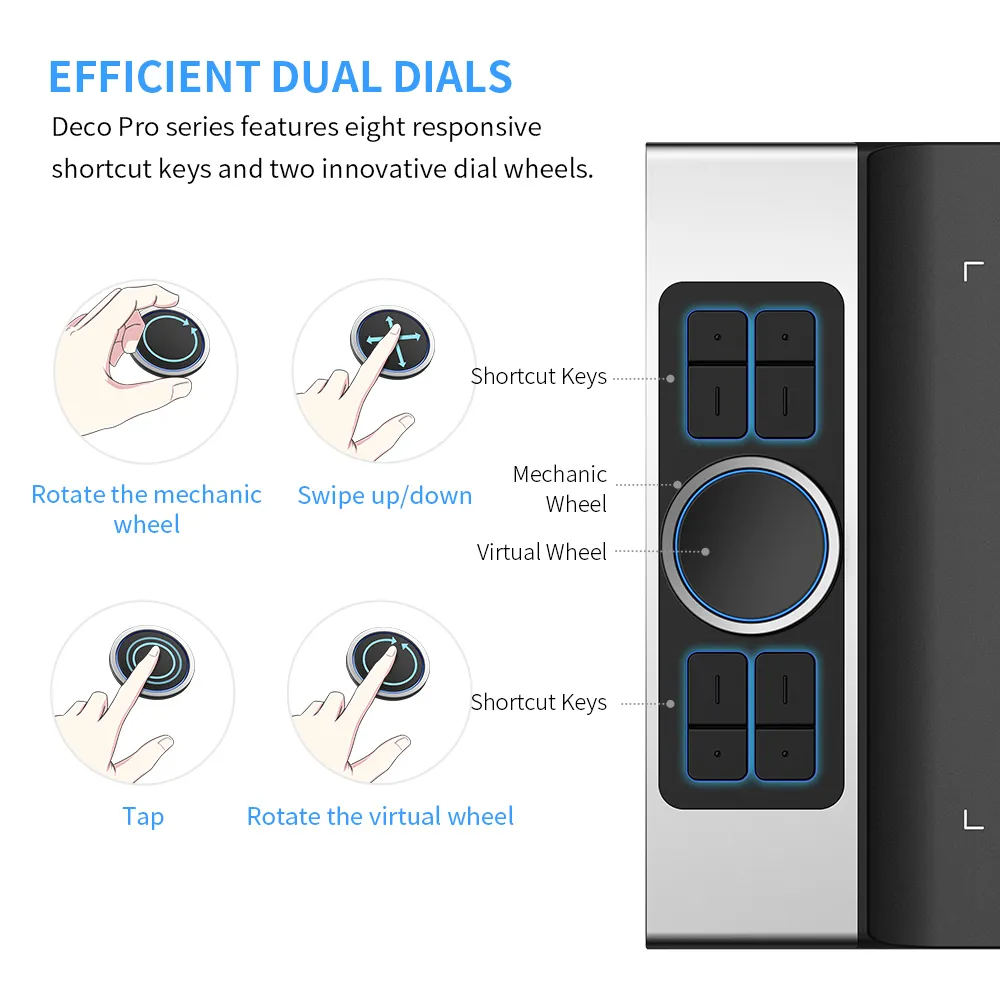

Deco Pro series features eight responsive shortcut keys and two innovative dial wheels. You can easily program them to fit and improve your workflow. Map them to different shortcut combinations in different software. With Deco Pro, smarter control, greater achievement.

Tap

Rotate the virtual wheel

Rotate the mechanic wheel

Swipe up/down

More Compatibility
More Possibilities

The Deco Pro series supports Windows, Mac OS, Android, Chrome OS and Linux systems.
It's compatible with most drawing and design software, including Photoshop, SAI, Painter, Illustrator, and more. Empower your creativity with more possibilities.

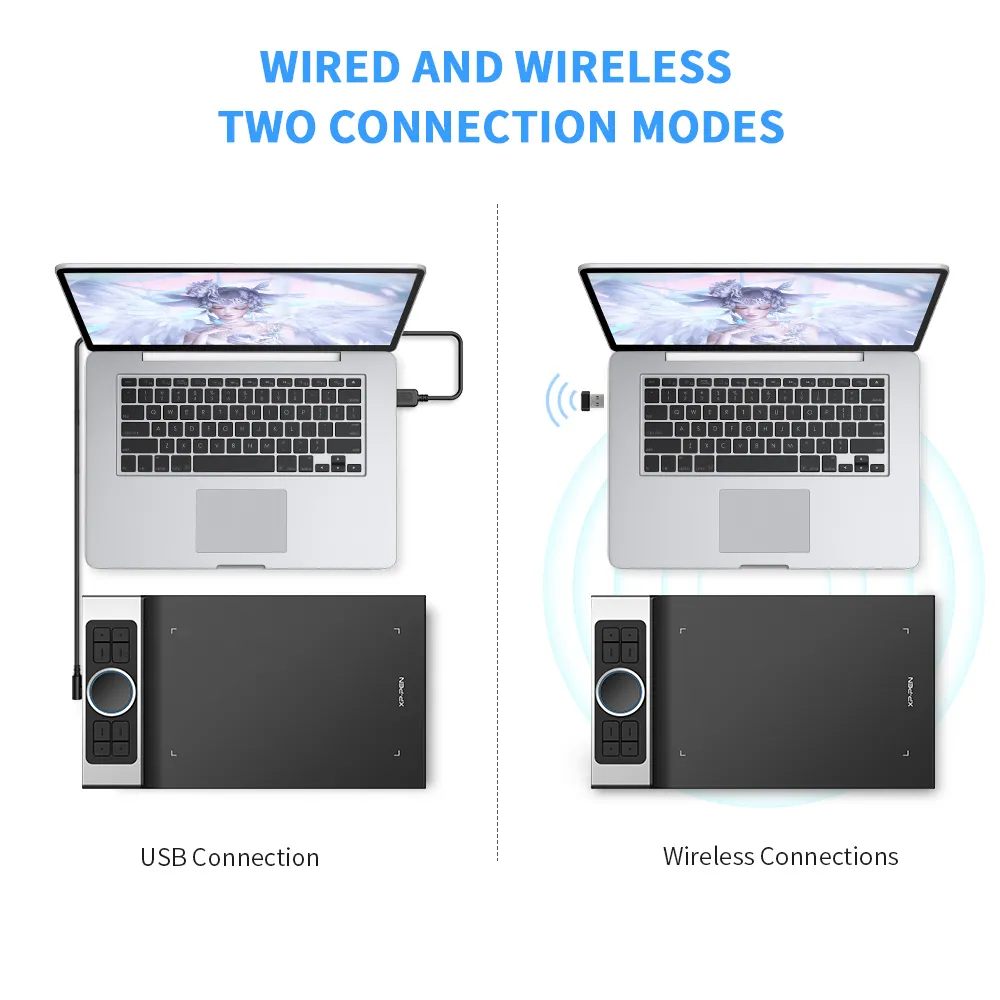

*Regarding the connection methods of Deco Pro SW and MW, the Bluetooth connection is available on Windows and Mac OS; the wireless receiver or wired connection is available on Windows, Mac OS, Android, Chrome OS, and Linux systems.

Use with Android applications.

The device is set to vertical mode by default.

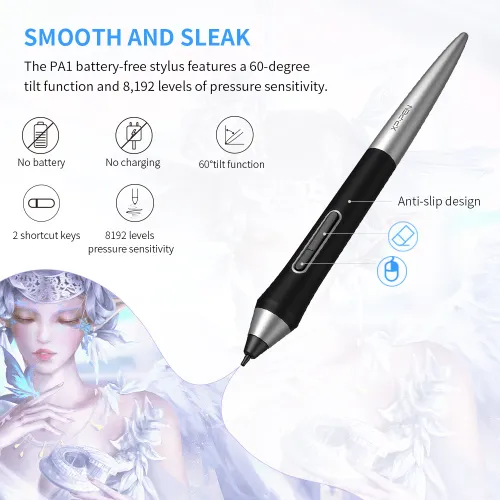

Smooth and Sleek

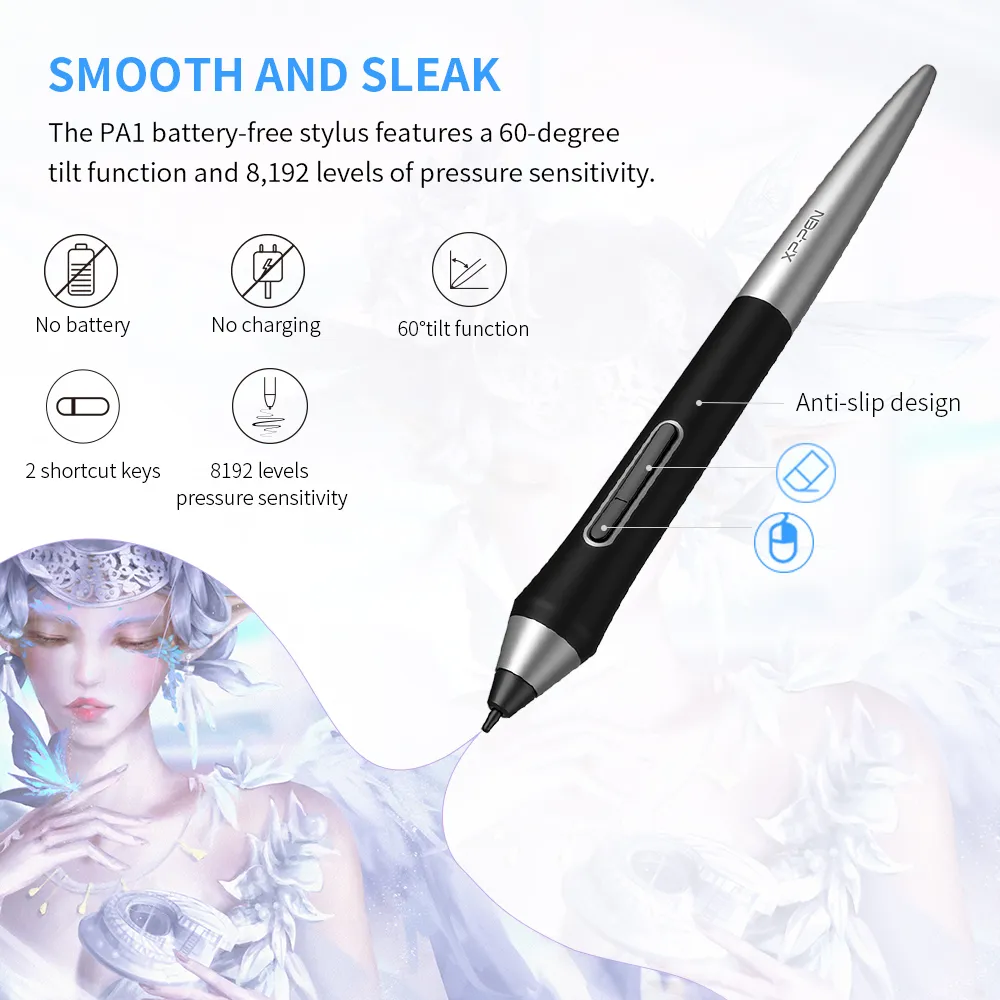

The PA1 battery-free stylus features a 60-degree tilt function and 8,192 levels of pressure sensitivity. You can shadow easily, draw delicate brushstrokes and lines, and express and present every subtle detail.

No battery

No charging

Anti-slip design

One click to switch

Right click

60° tilt

8192 pressure sensitivity levels

2 shortcut keys

Winner of Two
International Design Awards

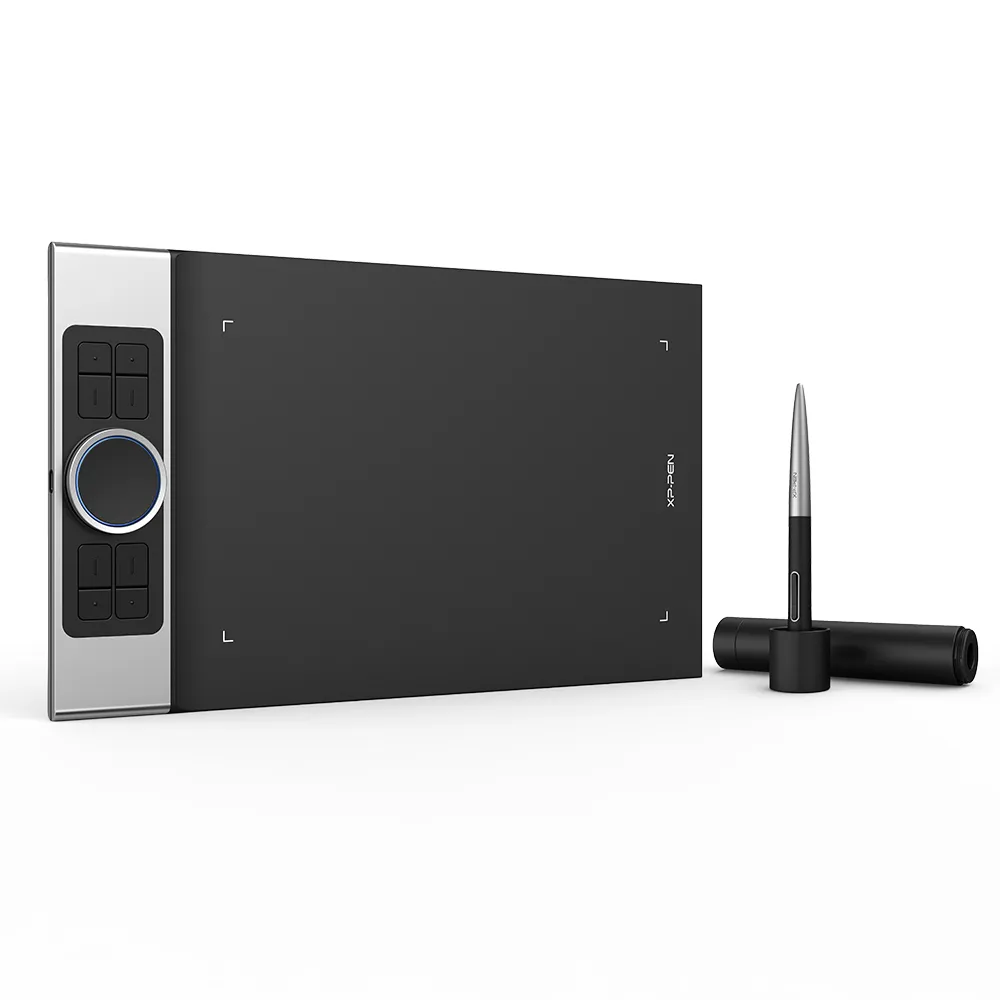

Feel the high-class texture and the light weight of the Deco Pro aluminum case. The black and the silver blend perfectly into its streamlined and dual-dial design. Deco Pro series won the 2019 Red Dot Design Award and the 2018 Good Design Award. Complement your splendid artwork with this award-winning design.

Deco Pro S

●Dimensions: 350.8 × 199.5 × 16.5mm
●Active Area: 9＂× 5＂
●PA1 battery-free stylus
●2 wheels & 8 shortcut keys

Buy Now >>

Deco Pro SW

●Dimensions: 350.8 × 199.5 × 16.5mm
●Active Area: 9＂× 5＂
●Bluetooth v5.0
●PA1 battery-free stylus
●2 wheels & 8 shortcut keys

Buy Now >>

Deco Pro M

●Dimensions: 399.7 × 227 × 16.5mm
●Active Area: 11＂× 6＂
●PA1 battery-free stylus
●2 wheels & 8 shortcut keys

Buy Now >>

Deco Pro MW

●Dimensions: 399.7 × 227 × 16.5mm
●Active Area: 11＂× 6＂
●Bluetooth v5.0
●PA1 battery-free stylus
●2 wheels and 8 shortcut keys

Buy Now >>

Specifications

Product Name

Deco Pro S

Deco Pro SW

Deco Pro M

Deco Pro MW

Dimensions

350.8 × 199.5 × 16.5mm

399.7 × 227 × 16.5mm

Active Area

9＂× 5＂

11＂× 6＂

Wireless Technology

Bluetooth v5.0

Pen

PA1 battery-free stylus

Tilt

60°

Pressure Levels

8192

Resolution

5080LPI

Report Rate

≥200RPS

≥220RPS

≥200RPS

≥220RPS

Reading Height

10mm

≥10mm

10mm

≥10mm

Shortcut Keys

Mechanic Wheel

Virtual Wheel

Power Key

Ports Included

USB-C

Power Input

DC 5V/0.5A

DC 5V/1A

DC 5V/0.5A

DC 5V/1A

Battery Capacity

900mAh/3.7V

1500mAh/3.7V

Continuous Working Time

>10h

>12h

Charging Time

≤2h

Compatibility

Windows 7/8/10, Mac OS X10.10 (or later), Android 6.0 (or later), Chrome OS 88 (or later), Linux

Deco Pro S

Deco Pro SW

Deco Pro M

Deco Pro MW

Product Name	Deco Pro S
Dimensions	350.8 × 199.5 × 16.5mm
Active Area	9＂× 5＂
Wireless Technology	/
Pen	PA1 battery-free stylus
Tilt	60°
Pressure Levels	8192
Resolution	5080LPI
Report Rate	≥200RPS
Reading Height	10mm
Shortcut Keys	8
Mechanic Wheel	1
Virtual Wheel	1
Power Key	/
Ports Included	USB-C
Power Input	DC 5V/0.5A
Battery Capacity	/
Continuous Working Time	/
Charging Time	/
Compatibility	Windows 7/8/10, Mac OS X10.10 (or later), Android 6.0 (or later), Chrome OS 88 (or later), Linux

Product Name	Deco Pro SW
Dimensions	350.8 × 199.5 × 16.5mm
Active Area	9＂× 5＂
Wireless Technology	Bluetooth v5.0
Pen	PA1 battery-free stylus
Tilt	60°
Pressure Levels	8192
Resolution	5080LPI
Report Rate	≥220RPS
Reading Height	≥10mm
Shortcut Keys	8
Mechanic Wheel	1
Virtual Wheel	1
Power Key	1
Ports Included	USB-C
Power Input	DC 5V/1A
Battery Capacity	900mAh/3.7V
Continuous Working Time	>10h
Charging Time	≤2h
Compatibility	Windows 7/8/10, Mac OS X10.10 (or later), Android 6.0 (or later), Chrome OS 88 (or later), Linux

Product Name	Deco Pro M
Dimensions	399.7 × 227 × 16.5mm
Active Area	11＂× 6＂
Wireless Technology	/
Pen	PA1 battery-free stylus
Tilt	60°
Pressure Levels	8192
Resolution	5080LPI
Report Rate	≥200RPS
Reading Height	10mm
Shortcut Keys	8
Mechanic Wheel	1
Virtual Wheel	1
Power Key	/
Ports Included	USB-C
Power Input	DC 5V/0.5A
Battery Capacity	/
Continuous Working Time	/
Charging Time	/
Compatibility	Windows 7/8/10, Mac OS X10.10 (or later), Android 6.0 (or later), Chrome OS 88 (or later), Linux

Product Name	Deco Pro MW
Dimensions	399.7 × 227 × 16.5mm
Active Area	11＂× 6＂
Wireless Technology	Bluetooth v5.0
Pen	PA1 battery-free stylus
Tilt	60°
Pressure Levels	8192
Resolution	5080LPI
Report Rate	≥220RPS
Reading Height	≥10mm
Shortcut Keys	8
Mechanic Wheel	1
Virtual Wheel	1
Power Key	1
Ports Included	USB-C
Power Input	DC 5V/1A
Battery Capacity	1500mAh/3.7V
Continuous Working Time	>12h
Charging Time	≤2h
Compatibility	Windows 7/8/10, Mac OS X10.10 (or later), Android 6.0 (or later), Chrome OS 88 (or later), Linux

Package Includes:

Deco Pro S/M:

1 x Deco Pro Pen Tablet

1 x Battery-free Stylus

8 x Replacement Pen Nibs

1 x Pen Holder

1 x USB-C to USB Cable

1 x USB to USB-C adaptor

1 x USB to micro USB adaptor

1 x Drawing Glove

1 x Quick Guide

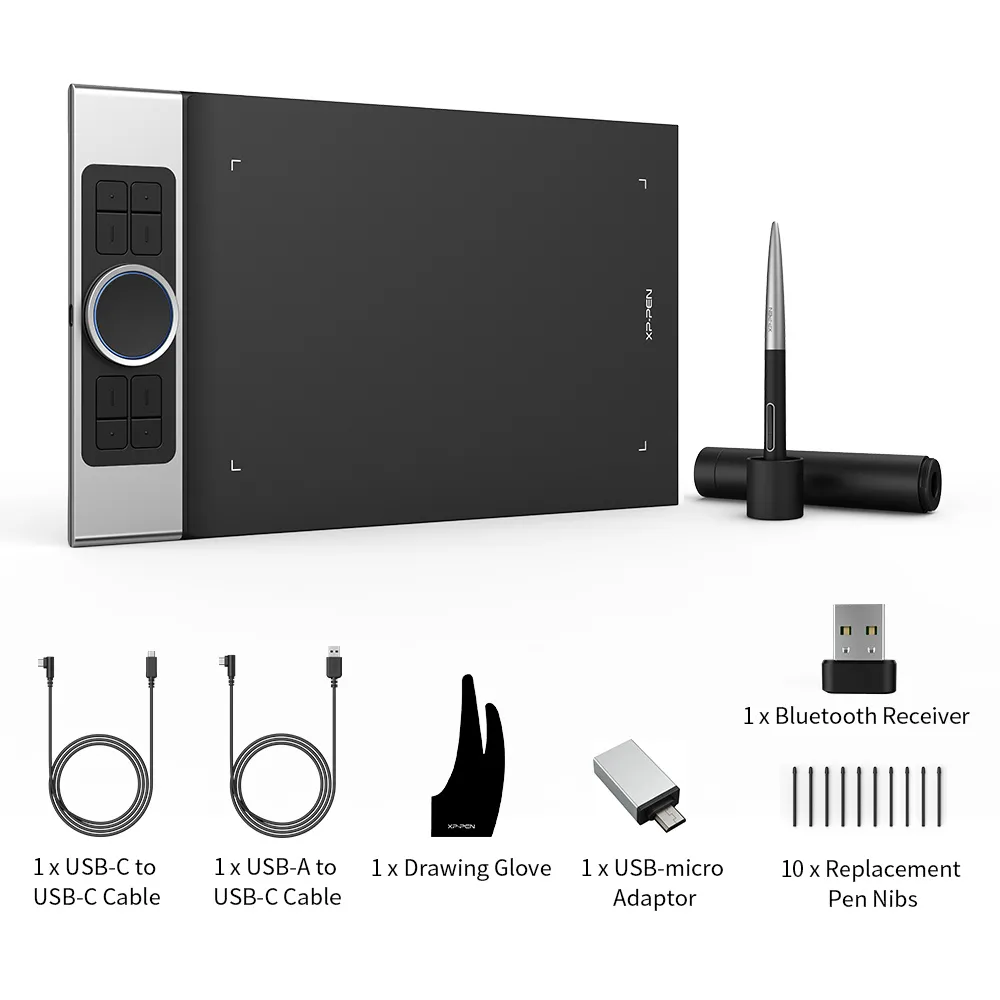

Deco Pro SW/MW:

1 x Deco Pro Pen Tablet

1 x Battery-free Stylus

10 x Replacement Pen Nibs

1 x Pen Holder

1 x USB-C to USB-C Cable

1 x USB-A to USB-C Cable

1 x Bluetooth Receiver

1 x USB-micro Adaptor

1 x Quick Guide

1 x Drawing Glove

1 x Warranty Card

1 x Quick Guide (for Android devices)

Linux OS	Version	Package Format	Supported Software
Arch	Arch Linux2019.12.01(64-bit)	.deb, .sh	GIMP, Krita
Centos	Centos7.0(64-bit)	.rpm, .sh	GIMP
Centos	Centos8(64-bit)	.rpm, .sh	GIMP, Krita
Debian	debian-9.5.0-amd64-netinst(64-bit)	.deb, .sh	GIMP, Krita
elementary OS	elementary OS 5.0(64-bit)	.deb, .sh	GIMP, Krita
ezgo Linux	ezgo14(64-bit)	.deb, .sh	GIMP, Krita
Fedora	Fedora32(64-bit)	.rpm, .sh	GIMP, Krita
Mageia	Mageia-7.1(64-bit)	.rpm, .sh	GIMP, Krita
Manjaro	manjaro-xfce-20.1.2-201019(64-bit)	.deb, .sh	GIMP
Mint	linuxmint-18.2-cinnamon-64bit	.deb, .sh	GIMP, Krita
OpenSUSE	openSUSE-Tumbleweed(64-bit)	.rpm, .sh	GIMP, Krita
Pop!_OS	pop-os_19.10(64-bit)	.deb, .sh	GIMP, Krita
Red Hat	Red Hat7(64-bit)	.rpm, .sh	GIMP
Ubuntu	Ubuntu14.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu16.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu17.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu18.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu19.04(64-bit)	.deb, .sh	GIMP, Krita
	Ubuntu20.04(64-bit)	.deb, .sh	GIMP, Krita

Function	Krita 4.3.0	Gimp 2.10.20	Inkscape 0.92
Pen Pressure Sensitivity
Tilt
Mouse Function
Eraser Button (Stylus：PH01, P06)
Switch between Pen and Eraser Modes
*If you have any further queries, please do not hesitate to contact us at service@xp-pen.com.

Linux OS

Arch

Version

Arch Linux2019.12.01(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

Centos

Version

Centos7.0(64-bit)
Centos8(64-bit)

Package Format

.rpm, .sh
.rpm, .sh

Supported Software

GIMP
GIMP, Krita

Debian

Version

debian-9.5.0-amd64-netinst(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

elementary OS

Version

elementary OS 5.0(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

ezgo Linux

Version

ezgo14(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

Fedora

Version

Fedora32(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP, Krita

Mageia

Version

Mageia-7.1(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP, Krita

Manjaro

Version

manjaro-xfce-20.1.2-201019(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP

Mint

Version

linuxmint-18.2-cinnamon-64bit

Package Format

.deb, .sh

Supported Software

GIMP, Krita

OpenSUSE

Version

openSUSE-Tumbleweed(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP, Krita

Pop!_OS

Version

pop-os_19.10(64-bit)

Package Format

.deb, .sh

Supported Software

GIMP, Krita

Red Hat

Version

Red Hat7(64-bit)

Package Format

.rpm, .sh

Supported Software

GIMP

Ubuntu

Version

Ubuntu14.04(64-bit)
Ubuntu16.04(64-bit)
Ubuntu17.04(64-bit)
Ubuntu18.04(64-bit)
Ubuntu19.04(64-bit)
Ubuntu20.04(64-bit)

Package Format

.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh
.deb, .sh

Supported Software

GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita
GIMP, Krita

Function

Pen Pressure Sensitivity

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Tilt

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Mouse Function

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Eraser Button(Stylus：PH01, P06)

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

Switch between Penand Eraser Modes

Krita 4.3.0

Gimp 2.10.20

Inkscape 0.92

*If you have any further queries, please do not hesitate to contact us at service@xp-pen.com.
