11.9-inch FHD fully-laminated display, 127% sRGB, 94% Adobe RGB
X3 empowered stylus, 3 grams initial activation force
Available in four colors (Classic Black, Space Blue, Carmine Red, and Apple Green)
Estimate
Le Petit Prince Property of POMASE - 2023
Licensed through Medialink
"All grown-ups were children first.
(But few of them remember it.)"
—Le Petit Prince
"Le Petit Prince" lives within the hearts of those who dream,
whether those who want to be painters or pilots.
Dreams shine like stars.
Stay true to the original aspiration,
and you will reach the bright end.
...
XPPen & Le Petit Prince
Artist 12/16 Pen Display (2nd Generation) co-branding journey begins.
Be pure, be inspired.
A river of stars, a collision of inspirations.
Born for creation. Salute to dreams.
An imagination for the purest inspiration
A creation for the purest passion
A journey for the purest satisfaction

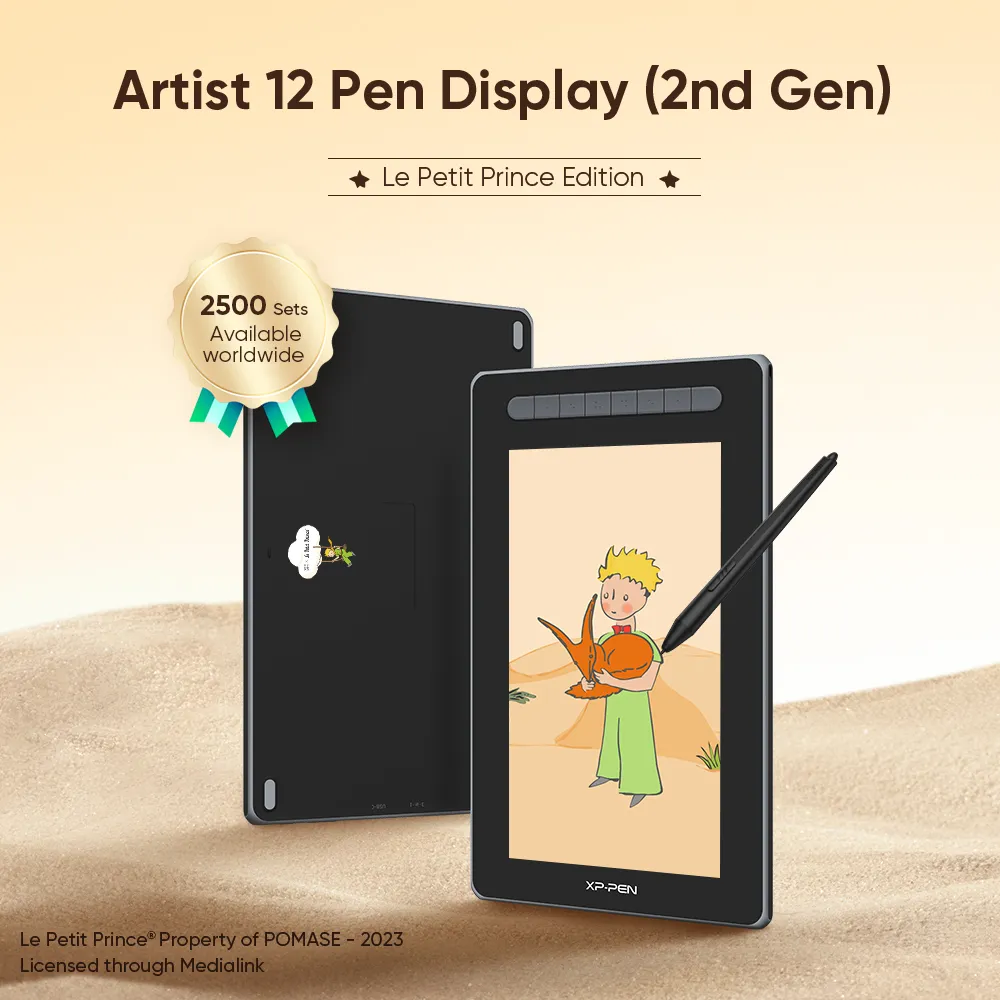

Artist 12 Pen Display (2nd Gen)
2500 sets available worldwide.
Artist 16 Pen Display (2nd Gen)
2500 sets available worldwide.
Pure partner. Dreams blossom.
XPPen & Le Petit Prince co-branded exclusive customised
peripheral
products to facilitate painting creation.
Unleash the artist within with the "pure heart" of Le Petit Prince.
Included in the package. lmage is for illustration only.
Please refer to the actual product.
Cleaning Cloth
Drawing Glove
Trendy Stickers
Customized Boot Screen
Bringing natural color to life,
capturing the moment of inspiration

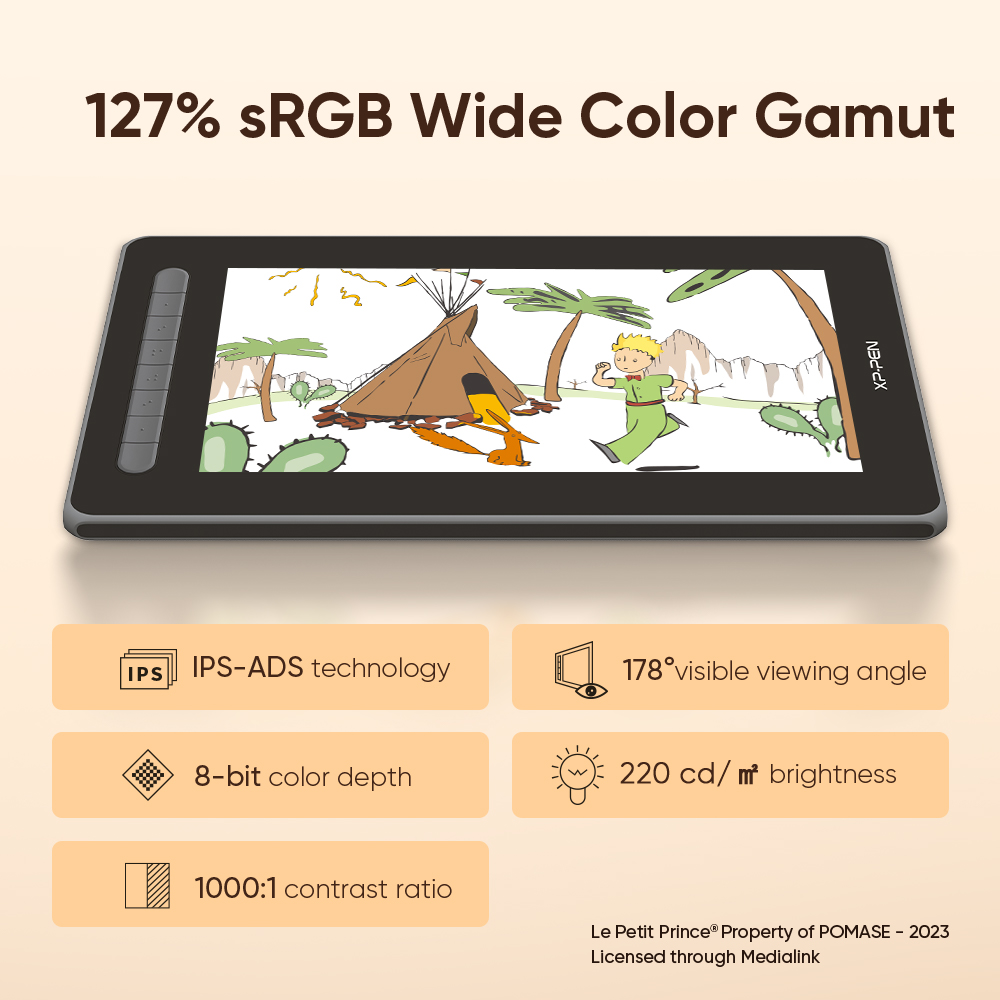

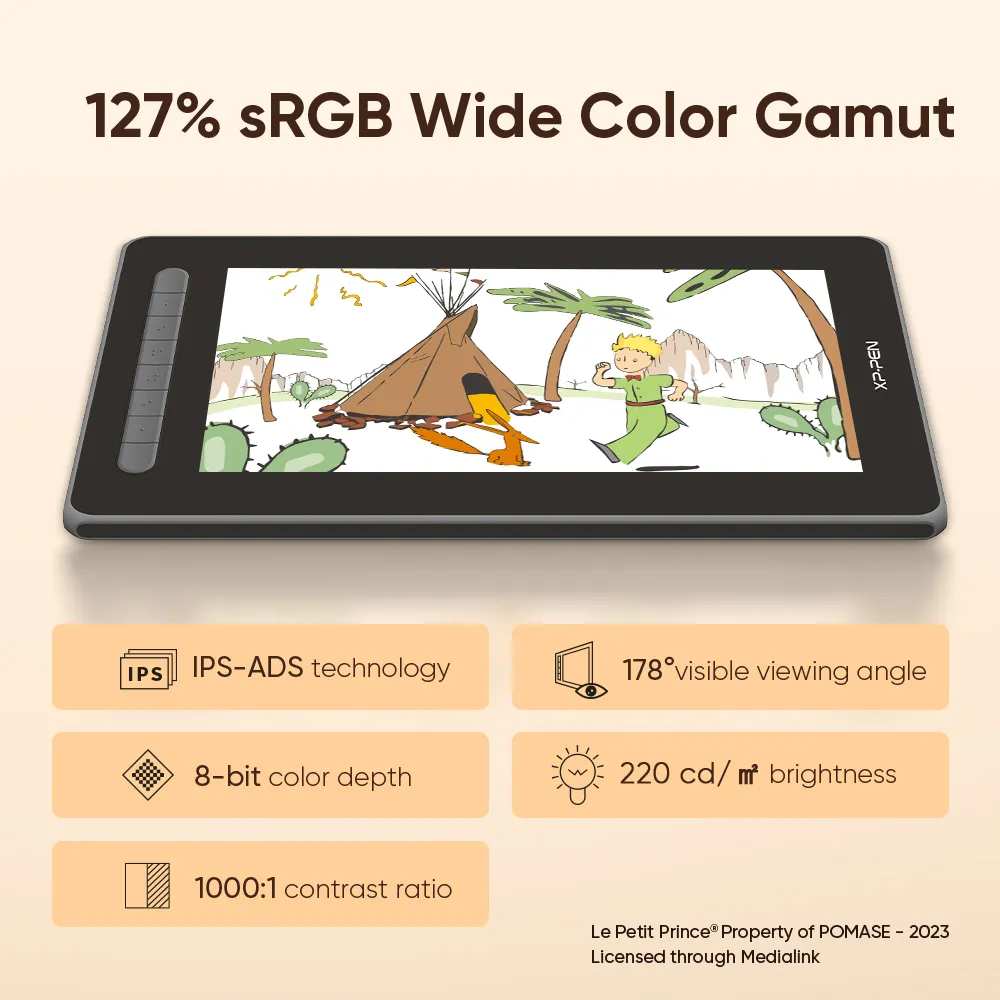

A wide color gamut of 127% sRGB* sees full color presentation and delicate
detail expression. Colors are vividly brought to life under your brush.
IPS-ADS technology
178° visible viewing angle
8-bit color depth
220 cd/㎡ brightness
1000:1 contrast ratio
The matte eye-protective screen blocks the light interference from the environment, allowing you to focus on creation without distractions.

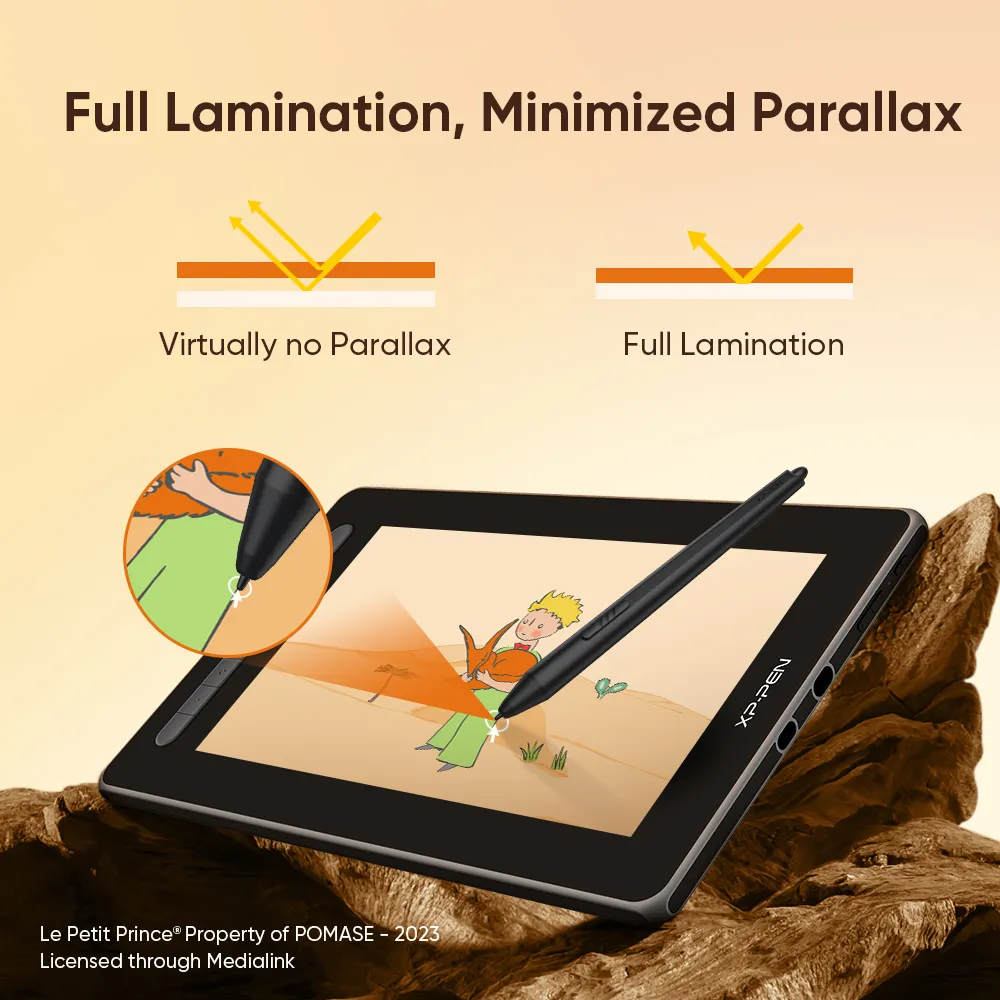

Full lamination screen technology. The screen and display are seamlessly laminated to avoid parallax errors between the stylus nib and cursor, precisely positioning every single one of your strokes.
Paper-like surface texture renders a natural experience of traditional drawing.
Creativity at your fingertips.
Masterpiece comes out

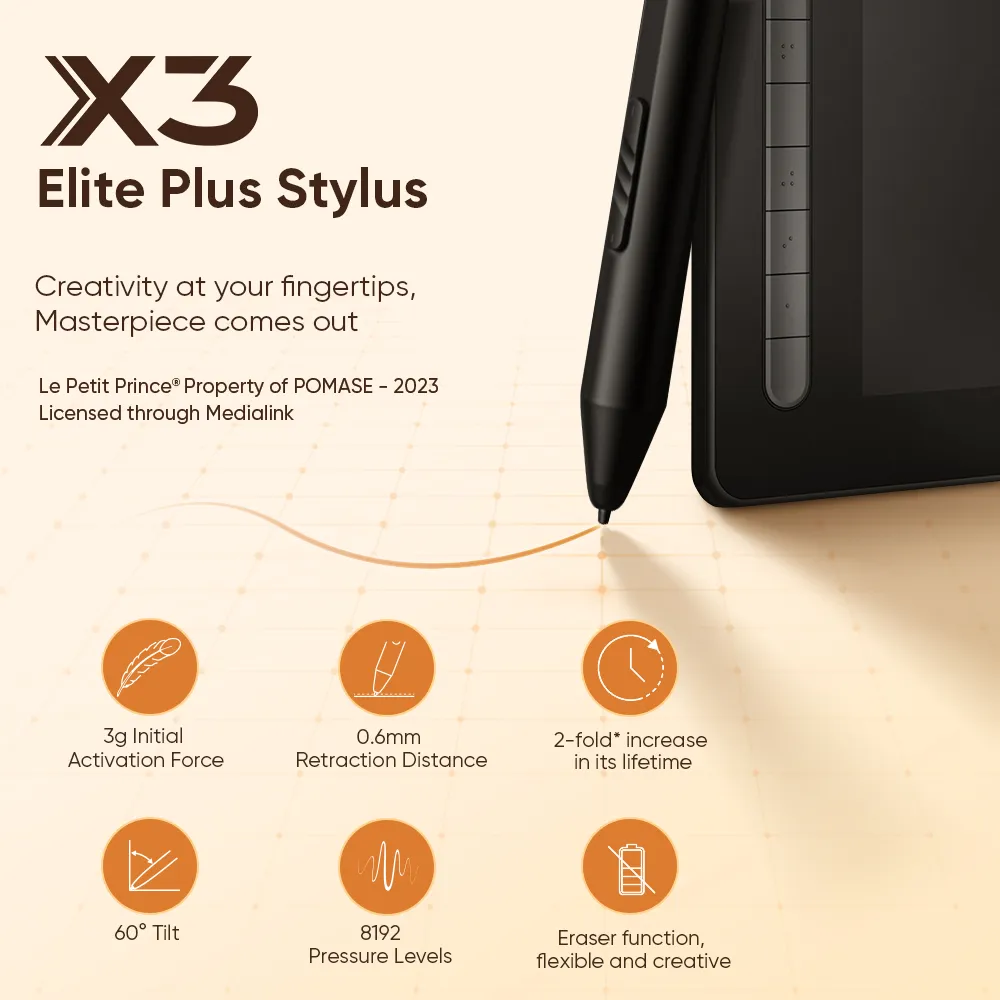

The stylus equipped with the X3 chip is akin to implanting a smart brain into the device, resulting in a remarkable
leap in sensitivity. The eraser function, easily activated by rotating the stylus body 180 degrees, provides you with a
realistic feeling of traditional pen and paper. Explore a brand new CG world with the X3 chip technology.
Initial activation force
As low as 3g*, 10 folds increase in sensitivity*
Retraction distance
As short as 0.6mm*,
half the original retraction distance*
Life span
Double the existing life span*
Easy to revise
Eraser function,
flexible and creative
Flows wherever inspiration strikes
3 grams* IAF and 0.6 mm* retraction
distance for more efficient ink output.
No spring part and anti-interference for
stable performance.
Digital signal transmission, double* the life span.
More precise positioning.
Never miss a single brushstroke.
Virtually no accuracy error.
No broken lines and no lag.
This data was taken from a laboratory simulation test and may vary depending
on the environment that the device is used in.
Electro-magnetic
Resonance
8192 levels
60° Tilt
200 RPS
10mm
Reading height
5080LPI
Resolution
Artist 16 pen display (2nd Gen) features 10 shortcut keys. Customize your shortcut keys in your software of choice to simplify your workflow and empower your productivity.
Artist 12 pen display (2nd Gen) features 8 shortcut keys. Customize your shortcut keys in your software of choice to simplify your workflow and empower your productivity.
Extend screen display and screen projection cover multiple uses including
creation, games, movies and entertainment, etc.
Long press the power button for 3 seconds, it will flash in blue and orange
alternately. When the screen is off, the display will switch into a drawing tablet,
giving you an additional drawing option.
Wear-resistant, anti-slippery and anti-shock all-round protection body. Easy-to-carry. Release your creative inspirations anytime anywhere.

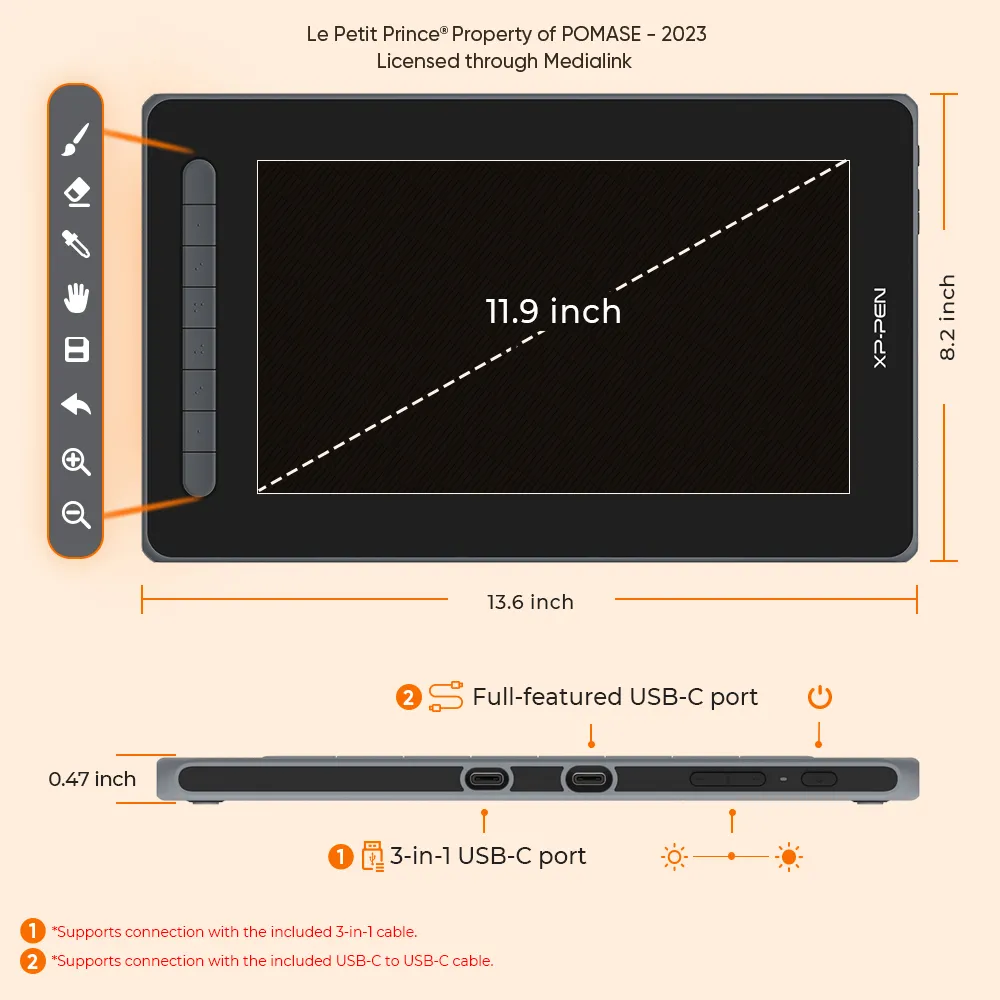

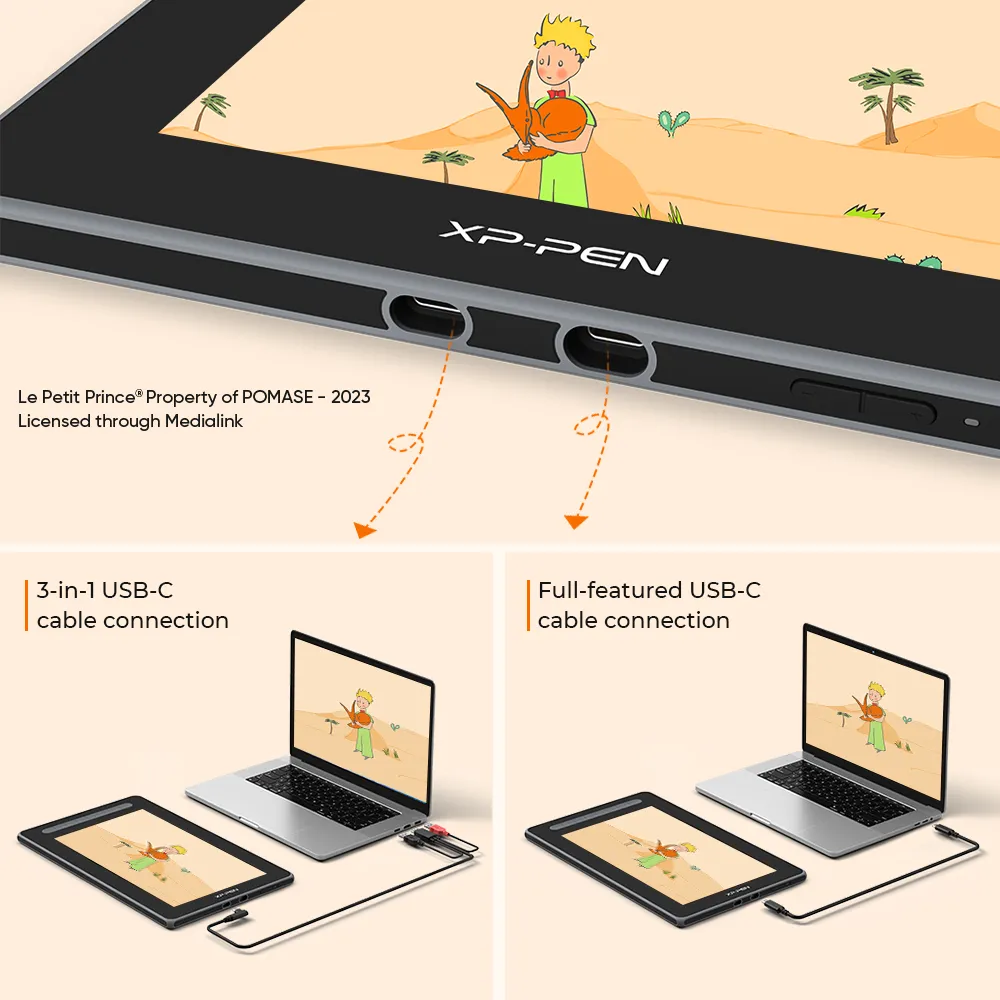

The 3-in-1 cable that supports HDMI signal transmission allows you to connect the drawing
display to a PC. The full-featured USB-C port makes connection easier with devices such as
PCs, Android phones, and Switch, allowing for a tidy desktop.
Full-featured USB-C cable
Full-featured USB-C port
* Supports connection with USB-C to USB-C cable only.
Watch the video3-in-1 USB-C cable connection
3-in-1 USB-C port
* Supports connection with 3-in-1 cable only.
Watch the videoWorks smoothly with various
systems and software
Compatible with Windows 7 (or later), macOS 10.10 (or later), Android (USB3.1 DP1.2),
Chrome OS 88 (or later), and Linux. Bring more possibilities to your creation.
Support popular digital art software such as Adobe Photoshop, Illustrator, SAI, CDR, GIMP,
Krita, MediBang, FireAlpaca and Blender3D, etc.
| Product Name | Artist 12 Pen Display (2nd Gen) | Artist 16 Pen Display (2nd Gen) |
| Product Model | CD120FH | CD160FH |
| Color Options | Black (Le Petit Prince Edition) | |
| Dimensions | 346.20 x 209.0 x 12 mm | 434 x 255.8 x 12.89 mm |
| Work Area | 263.23 x 148.07 mm | 340.99 x 191.81 mm |
| Reading Height | 10mm | |
| Shortcut Keys | 8 | 10 |
| Display Resolution | 1920 x 1080 | |
| Color Gamut (typical) | 90% NTSC ，127% sRGB ，94% Adobe RGB | |
| Contrast (typical) | 1000:1 | |
| Full Lamination | Yes | |
| Viewing Angle | 178° | |
| Stylus | X3 Elite Plus | |
| Pressure Levels | 8192 | |
| Tilt | 60° | |
| Resolution | 5080 LPI | |
| Accuracy | ±0.5 mm (center), ±1 mm (corner) | |
| Ports Included | 2 x USB-C | |
| Power Input | DC 5V⎓2A | |
| Compatibility | Windows 7 (or later), Mac OS X 10.10 (or later), Chrome OS 88 (or later), Android (USB3.1 DP1.2)，Linux | |
| Certifications | CE/WEEE/NOM/RCM/EAC/FCC/KC/RoHS/PSE/BIS/UKCA | |
1 x Drawing Display
1 x X3 Elite Plus Stylus
1 x 3-in-1 USB Cable
1 x USB-C to USB-C Cable
1 x Power Adapter for Artist 16（2nd Gen)
1 x Extension Cord
10 x Pen Nibs
1 x Nib Extractor
1 x Cleaning Cloth
1 x Black Drawing Glove
1 x Patterned Drawing Glove
1 x Quick Guide
1 x Warranty Card
1 x Stickers
| List of compatible Android devices | |
| HUAWEI Mate 10 | HUAWEI Mate 10 Pro |
| HUAWEI Mate 20 | HUAWEI Mate 20 Pro |
| HUAWEI Mate 20 X | HUAWEI Mate 30 Pro |
| HUAWEI Mate 40 | HUAWEI Mate 40 pro |
| HUAWEI Mate 30E Pro 5G | HUAWEI P20 |
| HUAWEI P20 Pro | HUAWEI P30 |
| HUAWEI P30 Pro | HUAWEI P40 |
| HUAWEI P40 Pro | HUAWEI P40 Pro+ |
| HUAWEI Mate 50 | HUAWEI Mate 50 Pro |
| HUAWEI Mate 40E | HUAWEI Mate 40 Pro+ |
| HUAWEI P50 Pro | HUAWEI P50 |
| HUAWEI P50E | HUAWEI Mate X2 |
| HUAWEI Mate Xs2 | HUAWEI Mate 50E |
| HUAWEI Mate 40E Pro | HUAWEI Mate 40 RS |
| HUAWEI P50 Pocket | Honor Note10 |
| Honor V20 | Honor 30pro+ |
| Honor Magic4 | Honor Magic4 Pro |
| Samsung Galaxy A90 5G | Samsung Galaxy Note9 |
| Samsung Galaxy Note10 | Samsung Galaxy Note10+ 5G |
| Samsung Galaxy S8 | Samsung Galaxy S8+ |
| Samsung Galaxy S9 | Samsung Galaxy S9+ |
| Samsung Galaxy S10 | Samsung Galaxy S10+ |
| Samsung Galaxy S10e | Samsung Galaxy S20 |
| Samsung Galaxy S20+ | Samsung Galaxy S20 Ultra |
| Samsung Galaxy S20 FE 5G | Samsung Galaxy S21 |
| Samsung Galaxy S21 FE | Samsung Galaxy S21 ultra |
| Samsung Galaxy S22 | Samsung Galaxy S22 Ultra |
| Samsung Galaxy Note20 | Samsung Galaxy Note20 Ultra |
| Samsung Galaxy Tab S7 | Samsung Galaxy Tab S7 FE |
| Samsung Galaxy Tab S5e | Samsung Galaxy S21+ |
| Samsung Galaxy S22+ | Samsung Galaxy S23 |
| Samsung Galaxy S23+ | Samsung Galaxy S23 Ultra |
| Samsung Galaxy Z Fold4 | Samsung W23 |
| Samsung W22 | Samsung W21 |
| Samsung W20 | Samsung Galaxy Tab S8 |
| Samsung Galaxy Tab S8+ | Samsung Galaxy Tab S8 Ultra |
| Samsung Galaxy Tab S7+ | Samsung Galaxy Tab S6 |
| Linux OS | Version | Package Format | Supported Software |
| Arch | Arch Linux2019.12.01(64-bit) | .deb, .sh | GIMP, Krita |
| Centos | Centos7.0(64-bit) | .rpm, .sh | GIMP |
| Centos8(64-bit) | .rpm, .sh | GIMP, Krita | |
| Debian | debian-9.5.0-amd64-netinst(64-bit) | .deb, .sh | GIMP, Krita |
| elementary OS | elementary OS 5.0(64-bit) | .deb, .sh | GIMP, Krita |
| ezgo Linux | ezgo14(64-bit) | .deb, .sh | GIMP, Krita |
| Fedora | Fedora32(64-bit) | .rpm, .sh | GIMP, Krita |
| Mageia | Mageia-7.1(64-bit) | .rpm, .sh | GIMP, Krita |
| Manjaro | manjaro-xfce-20.1.2-201019(64-bit) | .deb, .sh | GIMP |
| Mint | linuxmint-18.2-cinnamon-64bit | .deb, .sh | GIMP, Krita |
| OpenSUSE | openSUSE-Tumbleweed(64-bit) | .rpm, .sh | GIMP, Krita |
| Pop!_OS | pop-os_19.10(64-bit) | .deb, .sh | GIMP, Krita |
| Red Hat | Red Hat7(64-bit) | .rpm, .sh | GIMP |
| Ubuntu | Ubuntu14.04(64-bit) | .deb, .sh | GIMP, Krita |
| Ubuntu16.04(64-bit) | .deb, .sh | GIMP, Krita | |
| Ubuntu17.04(64-bit) | .deb, .sh | GIMP, Krita | |
| Ubuntu18.04(64-bit) | .deb, .sh | GIMP, Krita | |
| Ubuntu19.04(64-bit) | .deb, .sh | GIMP, Krita | |
| Ubuntu20.04(64-bit) | .deb, .sh | GIMP, Krita |
| Function | Krita 4.3.0 | Gimp 2.10.20 | Inkscape 0.92 |
| Pen Pressure Sensitivity | |||
| Tilt | |||
| Mouse Function | |||
| Eraser Button (Stylus：PH01, P06) | |||
| Switch between Pen and Eraser Modes | |||
| *If you have any further queries, please do not hesitate to contact us at service@xp-pen.com. | |||
